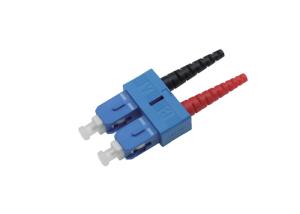

G. 657A2 DX Connector Fiber Optic Patch Cords

Name: G 657A2 DX Connector Fiber Optic Patch Cords
Brand: Yogel
Price: 1 USD

China G. 657A2 DX Connector Fiber Optic Patch Cords factory

Brand Name : Yogel

Model Number : SC UPC 2.0 3.0mm DX Connector

Certification : ISO9000 ,ROHS

Place of Origin : Shanghai China

MOQ : 10

Price : Negotiate

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 10000 pcs/ month

Delivery Time : 3-5 days after despoit

Packaging Details : 1 piece/inner bag, 100pcs/pack

Product name : SC UPC 2.0 3.0mm G. 657A2 DX Connector patchcord de fibra optica tyco

Insertion loss : Typ. ≤0.15 dB, Max. ≤0.30 dB

Return Loss : ≥50 dB

Jacket : PVC and LSZH

Length : 1 .5.10 meter

Guarantee : 1 year

Contact Now

SC UPC 2.0 3.0mm G. 657A2 DX Connector patchcord de fibra optica tyco

Features:

1. High quality zirconium dioxide ceramic ferrule.

2. Mature production technology and facility, stable interchangeability and repeatability.

3. The length, outer diameter, ferrule end face and adapter customizable.

4. Low insertion loss, high return loss

5. High dense connection, easy for operation

6. High credibility and stability

7. Good in repeatability and exchangeability

8. 100% test before shipment

Application:

1. Optical access network

2. Data processing net works

3. Fiber optic communication networks

4. Telecommunication networks

5. Fiber optic communication networks

6. CATV, LAN, WAN, test & measurement

Specifications:

Item	Parameter
	Single Mode			Multi-Mode
	PC	UPC	APC	PC
Test wavelength	1310/1550nm			850/1300nm
Insertion loss	Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss	≥45 dB	≥50 dB	≥60 dB	≥35dB
Repeatability	≤0.10 dB
Changeability	≤0.20 dB
Durability (1000 Mating)	≤0.20 dB
Connector end	SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC
Cable jacket	PVC, OFNR, LSZH, OFNP
Cable diameter	3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm
Fiber type	Single Mode: G. 652D, G. 655, G. 657A2, etc. Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)
Cable length	0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.
Fiber brand	Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant	IEC 60794-2-30

Order information:

Connector End A - Connector End B,

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length

G. 657A2 DX Connector Fiber Optic Patch Cords
