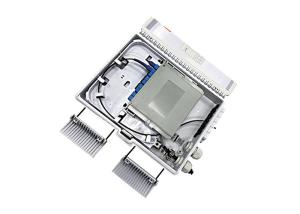

12 Core FAT NAP 18mm Input Fiber Optic Termination Box

Name: 12 Core FAT NAP 18mm Input Fiber Optic Termination Box
Brand: Yogel or OEM
Price: 1 USD

China 12 Core FAT NAP 18mm Input Fiber Optic Termination Box factory

Brand Name : Yogel or OEM

Model Number : FDB-LGX-12B

Certification : ISO9000 ,ROHS,CE

Place of Origin : Shanghai China

MOQ : 10

Price : Negotiate

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 5000 pcs/ month

Delivery Time : 3-5 days after despoit

Packaging Details : 20 piece/carton box

Product name : High quality fiber optic 12 port waterproof distribution box FTTH terminal box 12 core FAT NAP

Dimension(LxWxH) : 250*200*72mm

Installation : Wall/Pole mounting(Outdoor & Indoor)

Cable Entries : Supporting Uncut Mid-span

Max. Cable Diameter : Max. Input = φ18mm, Max. Output = 3.0*2.0 drop cable

Configuration : 1pcs 1x8 LGX type PLC splitter

Contact Now

High quality fiber optic 12 port waterproof distribution box FTTH terminal box 12 core FAT NAP

Description

FDB-WS-12B fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the
feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,
storage and cable connection in one solid protection box

Features

*Easy to maintain and extend the capacity.
*Fiber bend radius control more than 40mm.
*Suitable for the fusion splice or mechanical splice.
*1*8 Splitter can be installed as an option.
*Efficient cable management.
*12 ports cable entrance for drop cable.

*Integrated with splice cassette and cable management rods.

Configuartion

12 Core FAT NAP 18mm Input Fiber Optic Termination Box

Datasheet

Dimension(LxWxH)mm	250X200X72mm
Fiber Count	12Cores
Installation	Wall mounting(outdoorindoor), Pole Mounting
Level of Protection	IP65
Cable Entries	Supporting Uncut
Max Cable Diameter	Max Input =φ15mm, Max output =2x3mm
Configuration	12pcs SC adapter and 12pcs Double LC and 1 pcs 1*8 Blockless PLC
Packing Information (For Reference Only)	GW:21.2Kg QTY:20PCS MEAS:500X450X400mm
